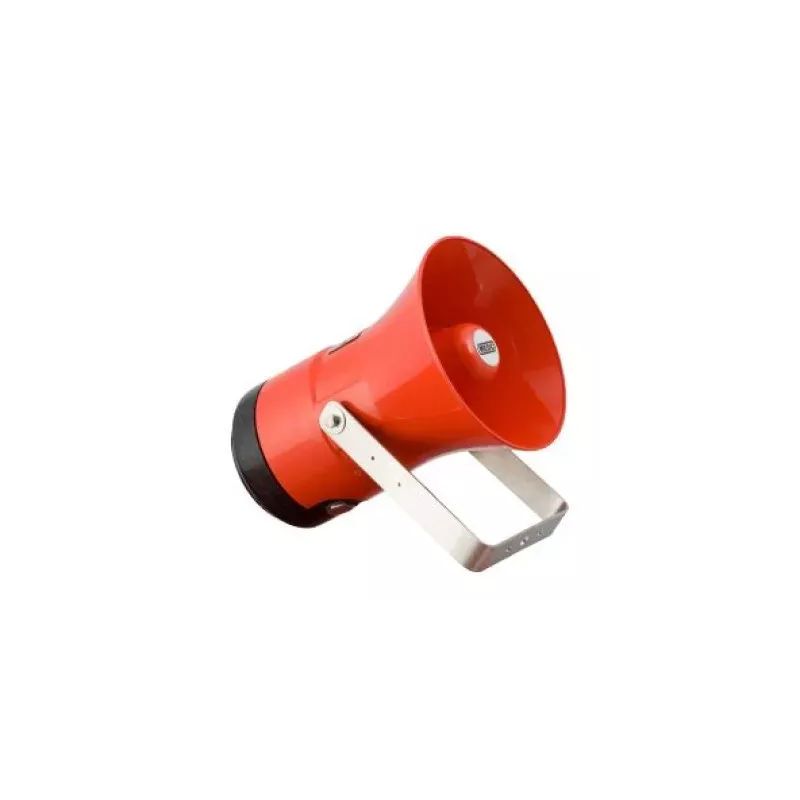

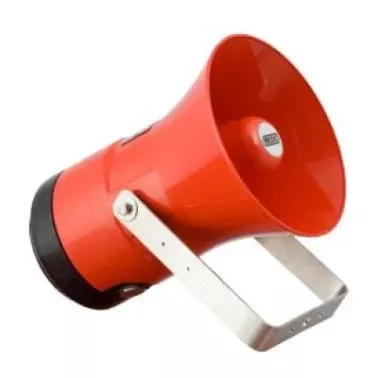

DB3B Flameproof horn sounder high power explosion proof 122dB @ 1m DB3BDGD048N2BNR

DB3B Flameproof horn sounder high power explosion proof 122dB @ 1m

Key Features:

- Ex d / Ex de IIC/IIIC T4/T5/T6

- ATEX certified

- IECEx certified

- UL certified for USA and Canada Class I, Div 2, Groups A-D Class I, Zone 1, Ex d IIC/AEx d IIC Gb Class II, Div 2, Groups F & G Zone 21, AEx tb IIIC Class III, Div. 1

- TR CU certified

- CQST certified

- CCOE certified

- Chinese Compulsory Certification for Fire systems (CCCF) certified

- INMETRO certified

- SIL 1 certified

- CSFM certified

- Up to 122dB output @ 1m

- Integral volume control

- 28 tones, user selectable

- 3 stage unit remotely switchable

- Tones can be programmed to customer’s specification

- DC supply voltage between 12V and 48V

- Ex enclosure - glass reinforced polyester

- Flare - high impact thermoplastic polyester
